W+D 627 RSG

Year: 2002

Reference: 627-ERB0025

MACHINE DESCRIPTION

High speed production of envelopes

Web & blank fed

Window

5 colour Maxiflex print unit

2+1 internal doctor blade printing

SPECIFICATION INFO

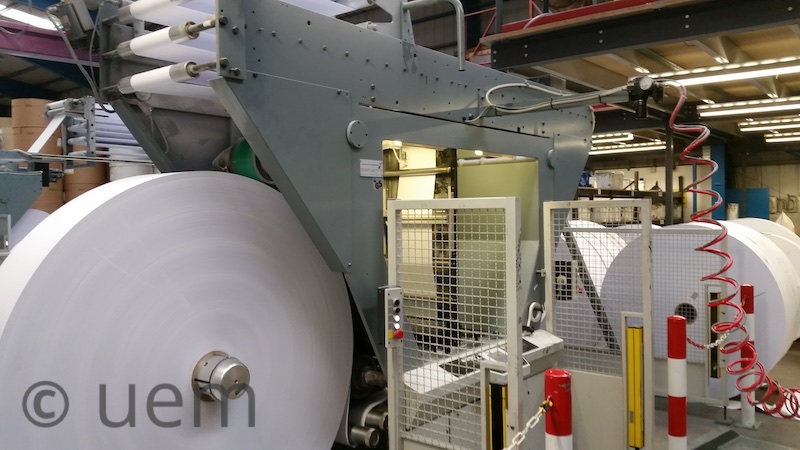

W+D 191.00 reel to reel splicer (2002)

BST web tension control

Profile/ Sever – solid knives

Registration for pre-printed reels

W+D Maxiflex 5 colour print unit

2+1 internal doctor blade print units

Sheet/Blank feed unit for operation from blanks

360 magnetic cylinder

High speed patching unit

W+D 190.00 window film splicer (2002)

Dynatec nozzle system DY 2008

Dextrin seal flap gumming

DIAX 4

TECHNICAL DATA

Size range envelopes:

Wallet min. 83 x 120 mm, max. 185 x 330 mm


Speed:

max. output: up to 1200 envelopes per minute [W+D catalogue]


Paper weights:

70 - 120 g/m²
