W+D 249.41 BN +.38

Year: 1997

Reference: 249-PRB0001

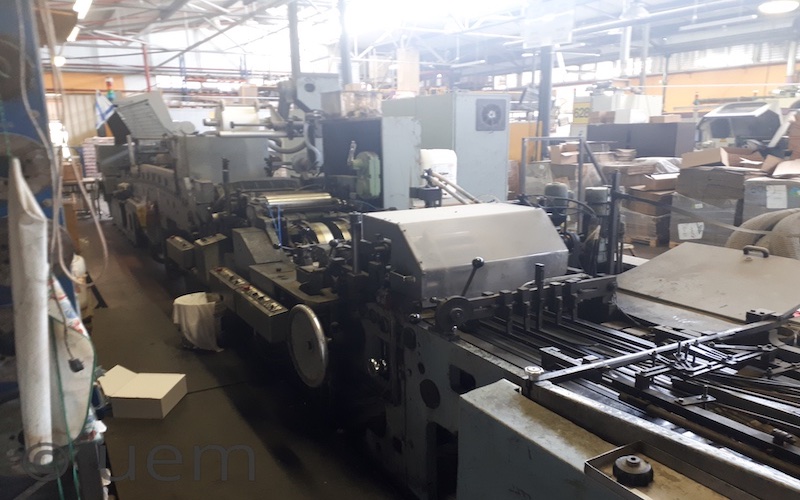

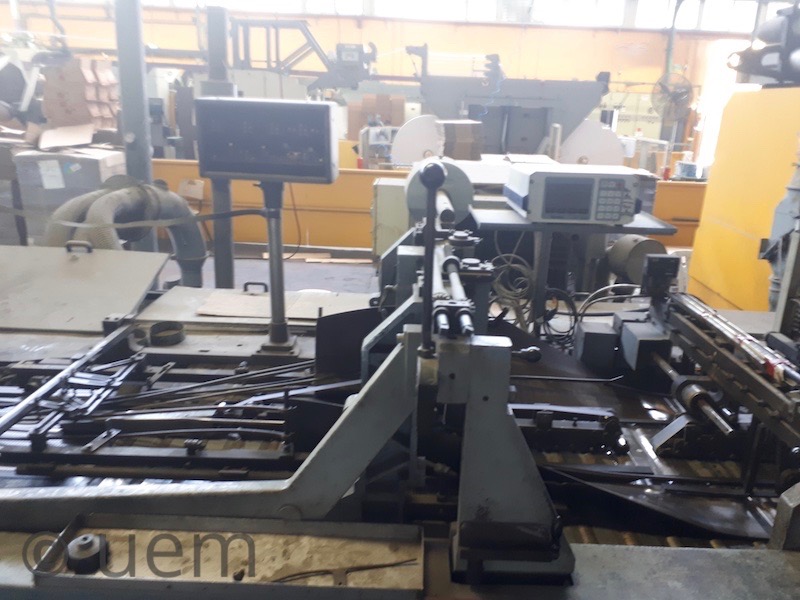

MACHINE DESCRIPTION

Production of small to large format Booklets and Pockets

Reel & blank fed

Window

3 doctor blade printing

SPECIFICATION INFO

W+D reel stand with web aligning

Blank feed unit

3 doctor blade printing units

Window with integrated film unwind

Magnetic system at window

Parts for outside side seams - OSS

Centre & side seam attachments for pockets

Dextrin seal flap gumming

Latex seal flap gumming

Timed gumming

W+D Silicone P+S unit - cold glue system

Hot air drying

Delivery with electronic surveillance

TECHNICAL DATA

Size range envelopes:

Booklet min. 127 x 178 mm, max. 305 x 420 mm


Size range pockets:

Centre seam min. 178 x 127 mm, max. 420 x 330 mm

Side seam min. 178 x 127 mm, max. 420 x 267 mm


Speed:

max. output: up to 450 per minute [W+D catalogue]


Paper weights:

80 - 150 g/m²


INFORMATION DISCLAIMER

Details within this website are correct at the time of publishing but maybe subject to change without prior notice.

Please contact us for further information, additional details and quotation.
